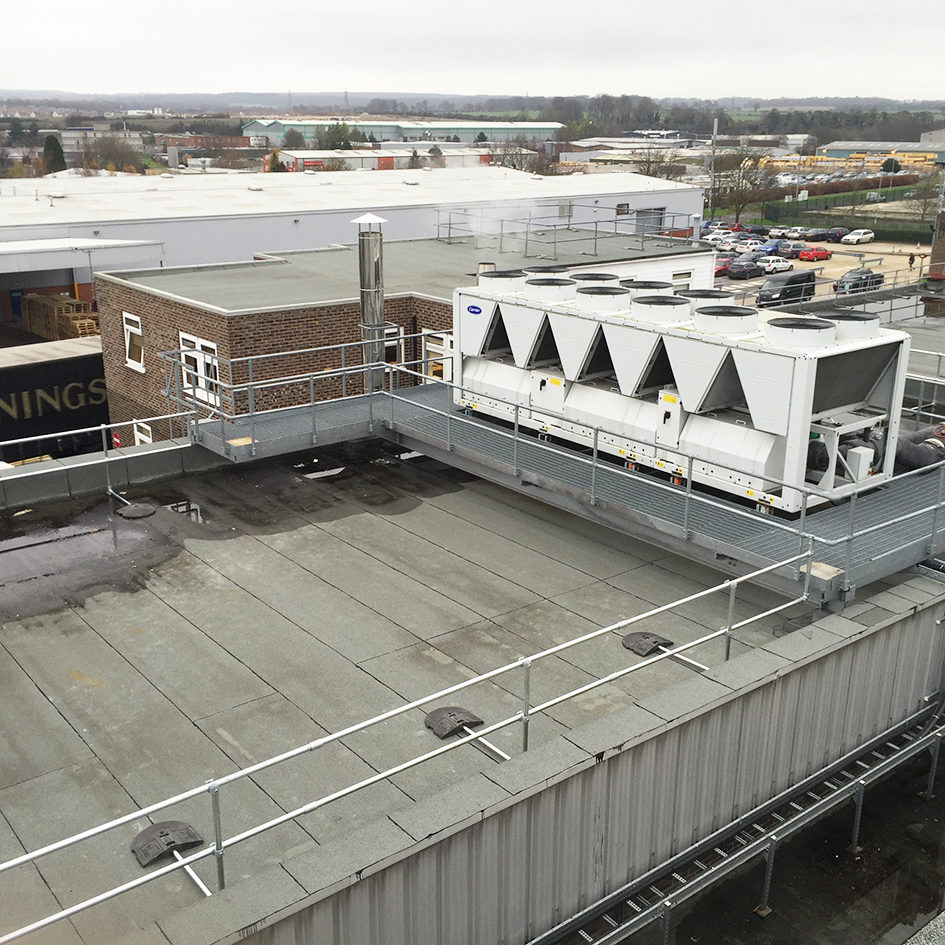

A combination of safety products from Kee Systems have been installed at the Twinings facility in Andover to provide a first-class edge protection solution for staff members accessing the rooftop.



Twinings is a leading manufacturer of high quality teas, with over 300 years of history at the site in Andover, Hampshire. Kee Systems was invited to the Twinings facility to assess the site and to offer a complete roof safety system. The building features a large roof with poor access and limited edge protection and required a safety solution to address these issues.



Having reviewed the site and the requirements, Kee Systems supplied and installed 320m of KeeGuard® systems to provide roof edge protection, four access platforms for safe access, eight Kee Gates®, 50m of Kee Klamp® tubular fittings to offer a railing system, and five access ladders to provide for safe access while working at height. A year later, Kee Systems was invited back to install additional platforms and gates.



“Having a large roof with various levels, poor access and limited edge protection, we needed a practical solution that would address all issues,” says Alison Pembleton, Facilities Manager at R. Twining & Co Ltd.” Kee Systems came up with exactly the right solution at the right price. The installers worked quickly, efficiently and more importantly, safely to deliver this project on time and to budget. We now have safe access on to and around our roof.”



Compatible with a range of roof membranes, including concrete, asphalt, PVC membrane, and felt, KeeGuard® offers a free-standing roof edge protection system capable of keeping workers on the roof safe without endangering the roof membrane itself. Employing a proven counterweight system, KeeGuard® combines a non-slip secure base with galvanised fittings and tube arranged in a modular configuration.



Kee Systems’ access platforms and step overs are custom built from either Kee Klamp® galvanised or Kee Lite® fittings and tube and can be designed up to 3m in height. When higher access is required, the platform is constructed with the addition of an extra support arm.



Kee Gates® are spring loaded so can automatically close behind the user, providing an added level of security and overcoming the potential for human error. This type of system is the preferred solution to chains, bars or sliding tubes, as these traditional forms of protection can lead to a hazardous void, when used incorrectly.



Kee Klamp® is a range of cast iron tubular fittings that can be installed using a standard hex key. Each fitting incorporates an internal set screw to lock the respective fitting safely and securely onto the tube to create a strong, stable and safe structure. The Kee Klamp® system securely joins structural steel tube into almost any conceivable configuration across a variety of angles and is also capable of accommodating on-site variations.



Kee Systems’ access ladders provide safe means of access onto a roof from either a fixed or cat ladder. The systems have been independently tested & CE approved to BS EN 14122-4.

For more information, visit: www.keesystems.com
